Why You Should Measure Your Labels Before Calibrating Your Barcode Printer

Why You Should Measure Your Labels Before Calibrating Your Barcode Printer

One of the most overlooked causes of barcode printer calibration problems is incorrect or inconsistent label dimensions.

When labels begin printing too high, too low, skipping labels, or feeding multiple labels, many users immediately recalibrate their printer. While calibration is often the correct first troubleshooting step, it is not always the real cause of the problem.

A barcode printer calibrates itself according to the physical characteristics of the installed media. If the labels themselves differ from their stated dimensions-or differ from the previous roll-the printer may detect the media differently, resulting in alignment issues, skipped labels, or incorrect feeding.

Before recalibrating your printer, always verify that the labels themselves match the specified dimensions.

Why Label Dimensions Matter

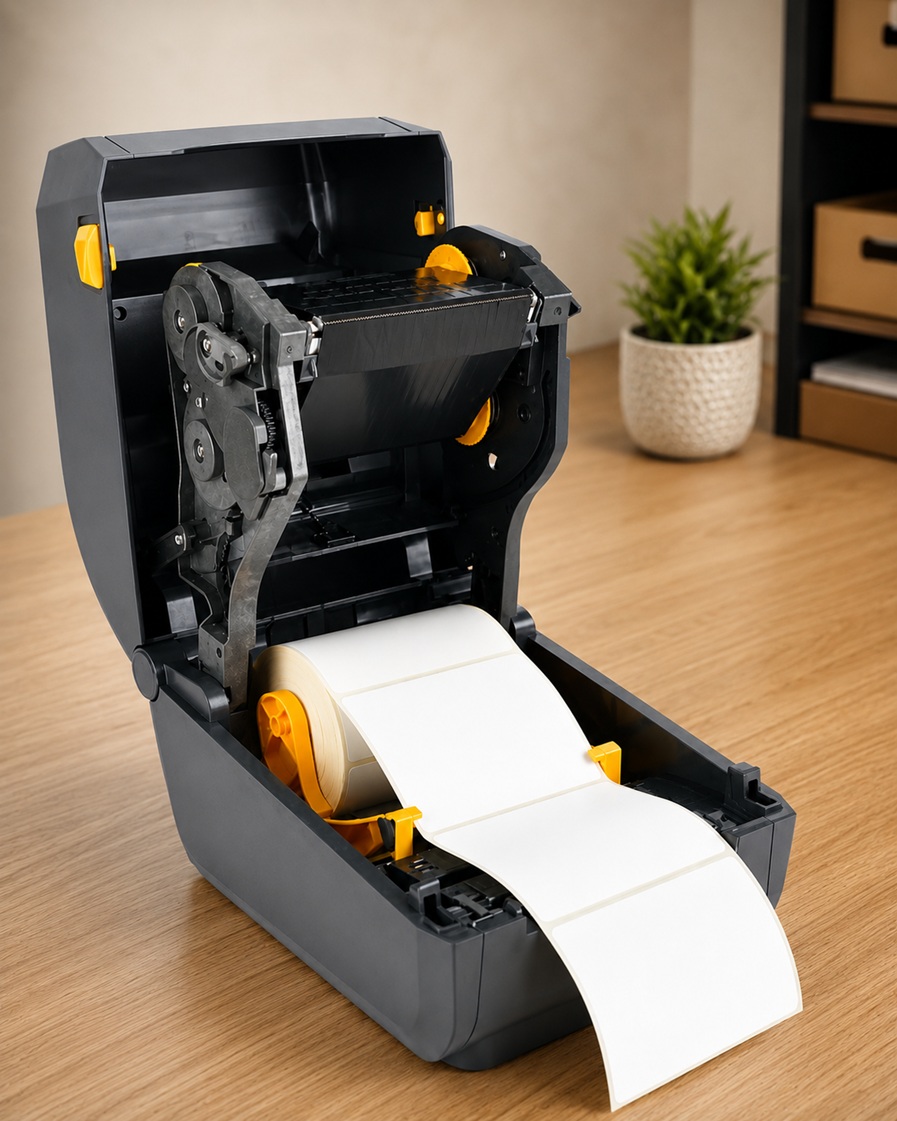

Barcode printers use optical media sensors to determine where each label begins and ends.

Depending on the printer model, the sensor detects:

• The gap between labels
• A black registration mark
• A notch in the media

Using these reference points, the printer positions every print accurately.

If the actual label dimensions differ from the expected dimensions, the printer may not detect each label consistently, resulting in problems such as:

• Printing too high
• Printing too low
• Printing across two labels
• Skipping labels
• Feeding multiple blank labels
• "Media Out" or "Paper Out" errors
• Failed or inaccurate calibration

In many situations, the printer is functioning perfectly-the media dimensions have simply changed.

Understanding Label Construction

Many users only measure the printed label itself. However, a barcode printer detects the entire media construction, not just the printable area.

A typical 100 × 50 mm die-cut label is commonly manufactured approximately as follows:

Component	Typical Dimension
Label Width	100 mm
Label Height	50 mm
Side Margin (Left)	~2 mm
Side Margin (Right)	~2 mm
Total Liner Width	~104 mm
Gap Between Labels	3 mm
Pitch (Label + Gap)	53 mm

This construction provides:

• Reliable sensor detection
• Accurate calibration
• Consistent media feeding
• Stable print positioning
• Better performance in automatic label applicators

Roll	Label	Gap	Result
Brand A	100 × 50	3 mm	Perfect printing
Brand B	99.5 × 49.5	2 mm	Sensor occasionally misses gap
Brand C	99 × 49	2 mm	Print shifts downward

Understanding Label Size, Gap and Pitch

When creating a label in software such as BarTender, ZebraDesigner, NiceLabel, or similar applications, you should enter the actual label size, not the total liner width.

For a standard 100 × 50 mm label:

Software Setting	Value
Label Width	100 mm
Label Height	50 mm
Gap Between Labels	3 mm (if requested)
Media Type	Die-cut Labels with Gap
Pitch (if required)	53 mm

Some software or printer drivers ask for the Pitch instead of the gap.

Pitch = Label Height + Gap

Example:

50 mm label + 3 mm gap = 53 mm pitch

Do not enter the liner width (approximately 104 mm) as the label width. The liner width is a physical measurement of the media roll and is not the printable area. Using the liner width as the label size may cause the software to position objects outside the actual label.

Why Different Label Brands Behave Differently

Today's label manufacturing industry is highly competitive.

Although two suppliers may both sell a roll as 100 × 50 mm, the actual construction can vary because of different manufacturing methods, die-cutting tolerances, liner materials, or production optimisation.

For example:

Manufacturer A

• Label Width: 100 mm
• Gap: 3 mm
• Side Margins: 2 mm

Manufacturer B

• Label Width: 99.5 mm
• Gap: 2 mm
• Side Margins: 1 mm

Both products may be sold under the same size description, yet they will behave differently inside the printer.

These small dimensional differences are often enough to affect media sensing and print positioning.

Why a 3 mm Gap Is Recommended

The 3 mm gap has become the most widely used spacing for die-cut roll labels because it provides an excellent balance between manufacturing efficiency and reliable printer performance.

A 3 mm gap offers several important advantages:

• Reliable gap sensor detection
• Faster and more accurate calibration
• Consistent media feeding
• Better print alignment
• Reduced label skipping
• Improved compatibility across different printer brands
• Better performance with automatic label applicators

The 3 mm spacing gives the optical sensor sufficient time to clearly distinguish the gap before detecting the next label.

What Happens When the Gap Is Reduced?

Some manufacturers produce labels with a 2 mm gap instead of the more common 3 mm gap.

While many modern printers can successfully detect a 2 mm gap, the smaller detection window leaves less margin for error.

Additional factors such as:

• Dust on the sensor
• Adhesive residue
• Glossy liner material
• High print speeds
• Sensor aging

may make accurate detection more difficult.

This can result in:

• Labels skipping
• Feeding multiple labels
• Print shifting
• Calibration inconsistencies

The printer itself is often not defective-it is simply working with media that provides less sensing margin.

Label Size May Not Be Exactly As Advertised

Another common issue is that the die-cut label itself may be slightly smaller than its nominal size.

For example, a roll sold as:

100 × 50 mm

may actually measure:

• 99.8 × 49.8 mm
• 99.5 × 49.5 mm
• 99 × 49 mm

These differences are usually within manufacturing tolerances, but when changing suppliers they may become noticeable, particularly if your label layout was designed using the previous supplier's dimensions.

Even a 1 mm reduction can move text, graphics, or barcodes closer to the label edge.

Why Print Position Changes After Changing Label Rolls

Many users experience perfect printing with one supplier and immediately notice alignment problems after installing another brand of labels.

This often happens because the printer has been calibrated using one media construction, while the new labels have:

• Different gap size
• Different liner width
• Different die-cut dimensions
• Different sensor reflectivity

Although the packaging shows the same label size, the physical media has changed.

This is why recalibration alone may not completely solve the problem.

Measure Before You Calibrate

Whenever changing to a different supplier-or even a new production batch-it is good practice to measure the labels before performing calibration.

A digital caliper is the best tool for checking:

• Actual label width
• Actual label height
• Gap between labels
• Total liner width
• Side margins
• Pitch (label + gap)

If these measurements differ from your previous labels, update your printer or software settings before assuming there is a fault with the printer.

Calibration Cannot Correct Incorrect Labels

Printer calibration teaches the printer how to detect the installed media.

However, calibration cannot change the physical dimensions of the labels.

If the labels have:

• Uneven die-cutting
• Variable gaps
• Incorrect dimensions
• Poor manufacturing consistency

the printer may continue experiencing alignment issues even after calibration has completed successfully.

This is why checking the media should always be part of your troubleshooting process.

Best Practices

Before blaming the printer:

✔ Measure the actual label size.

✔ Verify the gap between labels.

✔ Check the total liner width.

✔ Compare the new roll with the previous one.

✔ Ensure your software uses the correct label dimensions.

✔ Verify the printer is configured for the correct media type.

✔ Clean the media sensor before recalibrating.

✔ Purchase labels from reputable manufacturers with consistent quality control.

Frequently Asked Questions

Should every 100 × 50 mm label measure exactly 100 × 50 mm?

Minor manufacturing tolerances are normal. However, noticeable differences in label dimensions, gap size, or liner construction can affect media sensing and print alignment.

Is a 2 mm gap acceptable?

Many barcode printers can successfully detect a 2 mm gap. However, a 3 mm gap remains the most common industry practice because it provides a larger sensing window, more reliable calibration, and better compatibility across different printer brands and automatic label applicators.

Why did my printer start printing incorrectly after changing labels?

Even though the packaging shows the same label size, the actual label construction-including the gap, liner width, die-cut size, or liner material-may differ from your previous roll. These differences can affect how the printer detects and positions each label.

Will calibration solve every alignment problem?

No. Calibration only teaches the printer how to detect the installed media. It cannot compensate for poorly manufactured labels, inconsistent die-cutting, or incorrect physical dimensions.

Conclusion

Before performing barcode printer calibration, always verify the physical dimensions of your labels.

Measuring the actual label size, gap, liner width, and pitch can quickly identify whether the media itself has changed. Even small differences in construction can affect how the printer detects labels and positions the print.

A well-calibrated printer depends on consistently manufactured media. Understanding your label dimensions is just as important as understanding your printer settings.

Professional Tip: If a printer that was working perfectly suddenly starts printing in the wrong position immediately after changing to a new roll of labels, don't assume the printer is faulty. First, compare the new labels with the previous roll by measuring the label size, gap, liner width, and pitch. In many cases, the media-not the printer-is the source of the problem. This simple check can save time, reduce wasted labels, and avoid unnecessary service calls.
