How Barcode Printers Detect Labels: Understanding Media Sensors, Gap Sensors & Black Mark Sensors

One of the most common questions users ask after installing a barcode printer is:

• Why is my printer skipping labels?
• Why is it printing in the wrong position?
• Why is it feeding multiple blank labels?
• Why does it say "Media Out" when labels are loaded?

In many cases, the printer is working correctly-the real issue is that it cannot accurately detect where one label ends and the next begins.

Every barcode printer uses a media sensor to identify the start of each label. Once the printer knows this position, it can stop feeding at exactly the right point and print each label accurately.

There are two primary label detection methods used in barcode printers:

• Gap Sensor

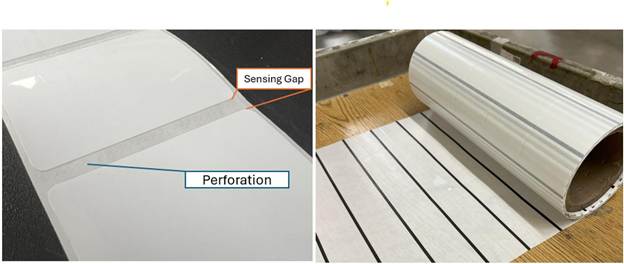

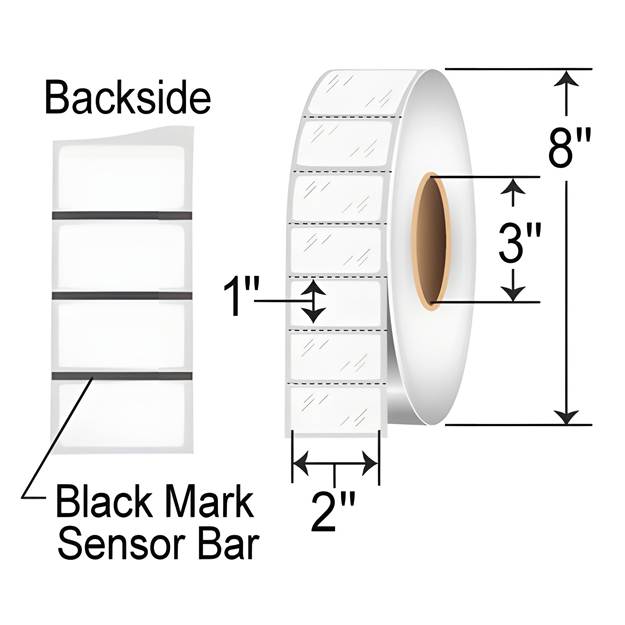

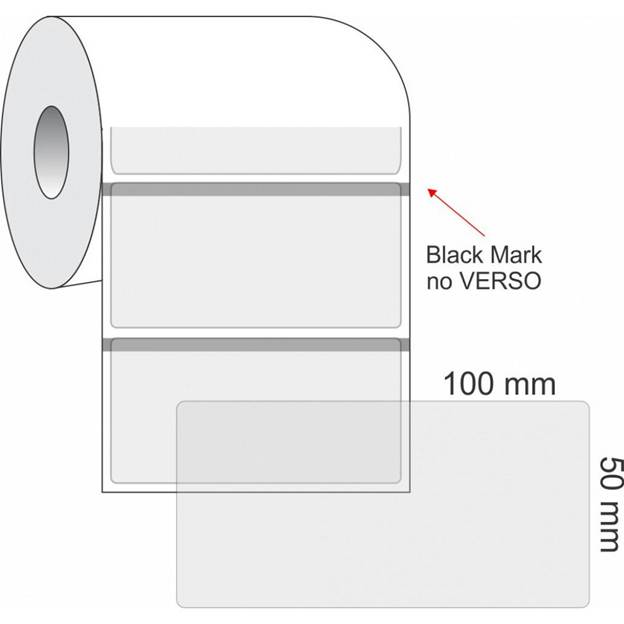

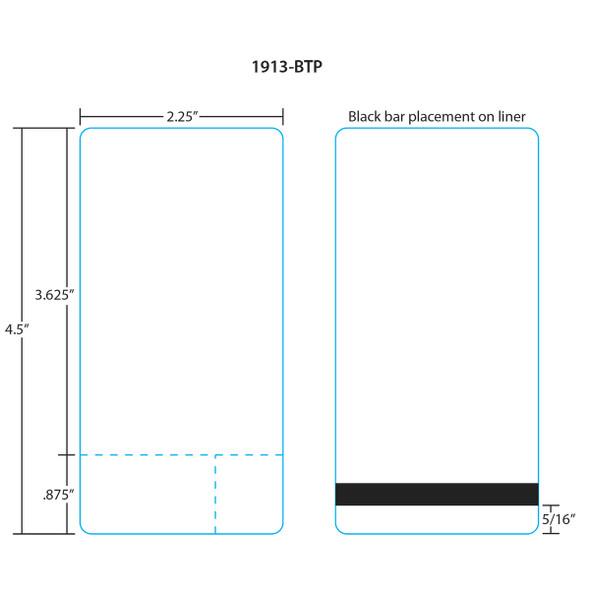

• Black Mark Sensor

Understanding how these sensors work will help you choose the correct labels, configure your printer properly, and solve many common printing problems.

The Media Sensor Detects Only One Position

A common misconception is that a barcode printer scans the entire width of the label roll.

In reality, it does not.

A barcode printer reads only a small sensing area directly beneath its media sensor. The printer looks for changes in light at that specific position to determine where each label begins and ends.

Because of this, the location of the sensor is extremely important. If the gap, notch, or black mark does not pass through the sensor's path, the printer may fail to detect the media correctly.

Types of Media Sensor Positions

Fixed Centre Sensor

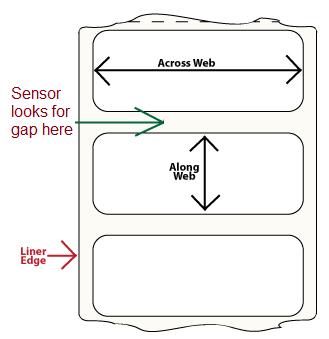

Many desktop barcode printers have a transmissive sensor permanently positioned in the centre of the media path.

With this design, the printer expects the gap or exposed liner to pass through the centre of the label roll.

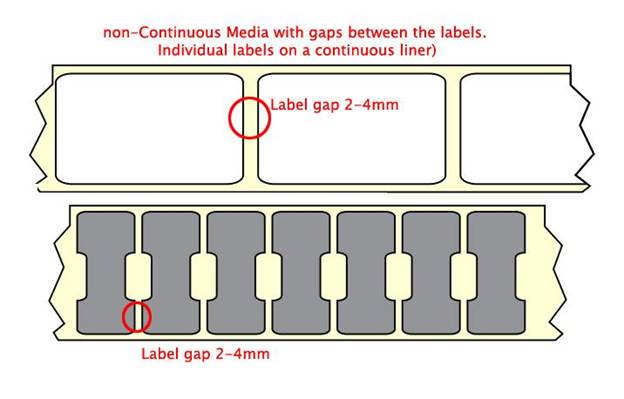

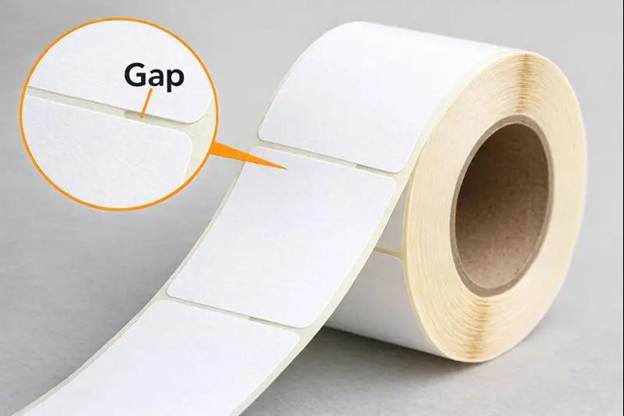

For standard rectangular barcode labels, this is usually the horizontal gap between two labels.

Suitable for:

• Shipping labels
• Product labels
• Warehouse labels
• Retail labels
• Inventory labels

Fixed Off-Centre Sensor

Some barcode printers have a sensor permanently located toward the left or right side of the media path.

In these printers, the label gap, die-cut notch, or exposed liner must pass through that specific sensing position.

Even if a gap exists elsewhere on the label, it may not be detected if it does not cross the sensor.

This design is commonly found on printers intended for specialised labels or tags.

Movable Media Sensor

Higher-end industrial barcode printers often feature a movable media sensor.

This allows the operator to position the sensor exactly where the registration feature appears.

The sensor can be aligned with:

• The centre gap between labels
• A side gap
• A die-cut notch
• An exposed liner channel

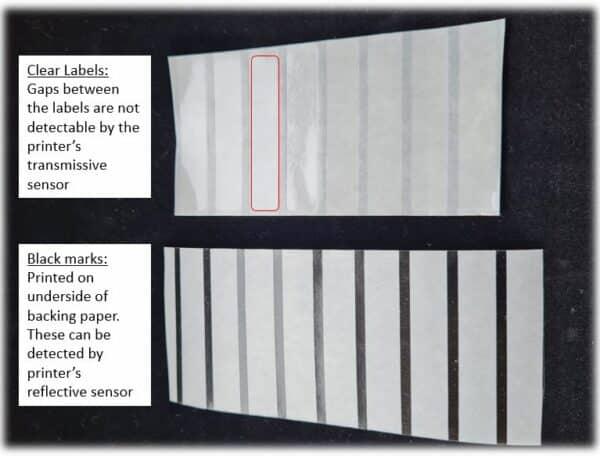

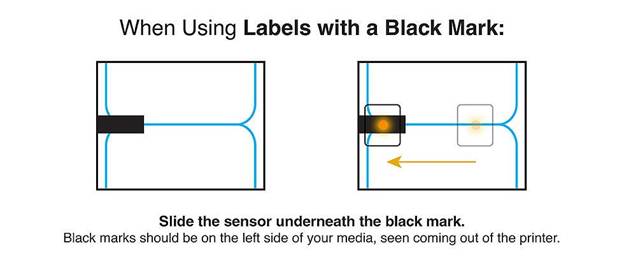

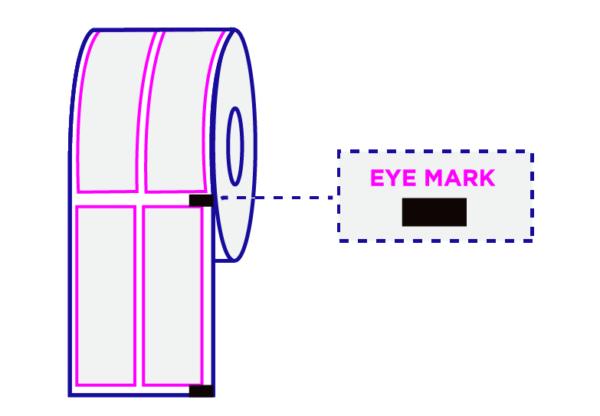

• A black registration mark when using reflective sensing

Movable sensors are especially useful for labels with unusual shapes or layouts, including:

• Jewellery labels
• Butterfly labels
• Dumbbell labels
• Multi-part labels
• Circular labels
• Irregular die-cut labels

Correct sensor alignment is essential for reliable media detection and accurate printing.

Why Does a Barcode Printer Need a Media Sensor?

Unlike office printers that print on continuous sheets of paper, barcode printers usually print on individual labels mounted on a release liner.

The printer must know:

• Where each label begins
• Where each label ends
• When to stop feeding
• Where to start printing the next label

Without accurate media detection, you may experience:

• Printing too high or too low
• Printing across two labels
• Skipping labels
• Continuous feeding
• Blank labels
• "Media Out" or "Paper Out" errors
• Calibration failures

The media sensor prevents these problems by providing a precise reference point for every label.
