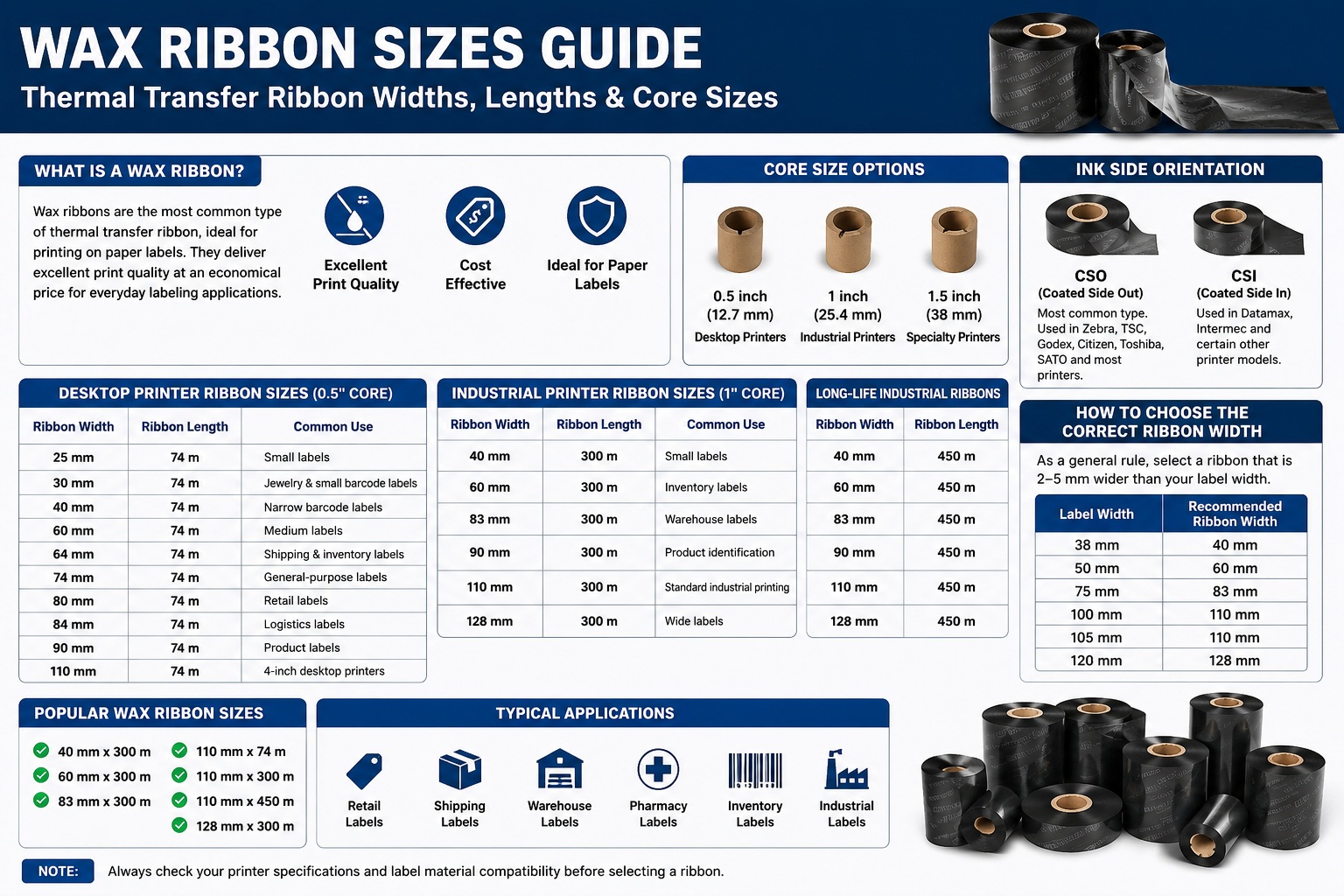

Wax Ribbon Sizes Explained: Complete Guide to Thermal Transfer Ribbon Dimensions

Thermal transfer  ribbons are manufactured in many widths and lengths to match different desktop, industrial, and high-volume barcode printers. The correct size depends on your printer model, label width, and ribbon core size.

Below are some of the most common  ribbon sizes used in the industry.

Common  Ribbon Sizes

Desktop Printer Ribbons (0.5" / 12.7 mm Core)

Ribbon Width	Ribbon Length	Common Use
25 mm	74 m	Small labels
30 mm	74 m	Jewelry & small barcode labels
40 mm	74 m	Narrow barcode labels
60 mm	74 m	Medium labels
64 mm	74 m	Shipping & inventory labels
74 mm	74 m	General-purpose labels
80 mm	74 m	Retail labels
84 mm	74 m	Logistics labels
90 mm	74 m	Product labels
110 mm	74 m	4-inch desktop printers



Industrial Printer Ribbons (1" / 25.4 mm Core)

Ribbon Width	Ribbon Length	Common Use
40 mm	300 m	Small labels
60 mm	300 m	Inventory labels
83 mm	300 m	Warehouse labels
90 mm	300 m	Product identification
110 mm	300 m	Standard industrial printing
128 mm	300 m	Wide labels



Long-Life Industrial Ribbons

Ribbon Width	Ribbon Length
40 mm	450 m
60 mm	450 m
83 mm	450 m
90 mm	450 m
110 mm	450 m
128 mm	450 m

These are commonly used on high-volume industrial printers from Zebra, Honeywell, TSC, Toshiba, SATO, Citizen, Godex, and similar manufacturers.



Popular  Ribbon Sizes

Some of the most widely used  ribbon sizes worldwide include:

• 40 mm × 300 m
• 60 mm × 300 m
• 83 mm × 300 m
• 110 mm × 74 m
• 110 mm × 300 m
• 110 mm × 450 m
• 128 mm × 300 m



Common Core Sizes

Thermal transfer ribbons are available with different core diameters:

Core Size	Typical Printer Type
0.5 inch (12.7 mm)	Desktop printers
1 inch (25.4 mm)	Industrial printers
25 mm	Industrial barcode printers
1.5 inch (38 mm)	Some specialty printers



Ink Orientation

Ribbons are available in two ink configurations:

• CSO (Coated Side Out) Also Called Ink-Out - The most common type, used by many Zebra, TSC, Godex, Citizen, Toshiba, and SATO printers.
• CSI (Coated Side In) Also Called Ink-In - Used by certain Datamax, Intermec, and other printer models.

Always verify your printer's ribbon orientation before purchasing.



How to Choose the Correct Ribbon Width

As a general rule:

• Select a ribbon that is 2-5 mm wider than your label width.
• This helps protect the printhead from direct contact with the label and can reduce uneven wear.



For example:

Label Width	Recommended Ribbon Width
38 mm	40 mm ribbon
50 mm	60 mm ribbon
75 mm	83 mm ribbon
100 mm	110 mm ribbon
105 mm	110 mm ribbon
120 mm	128 mm ribbon



Typical Applications

• 25-40 mm: Jewelry labels, cable labels, laboratory labels
• 60 mm: Pharmacy labels, inventory labels, shelf labels
• 83 mm: Retail barcode labels, warehouse labels
• 110 mm: Shipping labels, logistics labels, carton labels
• 128 mm: Large product labels, pallet labels, industrial identification
